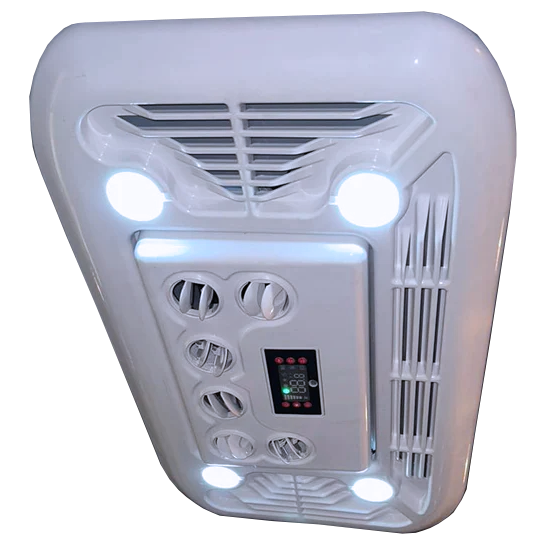

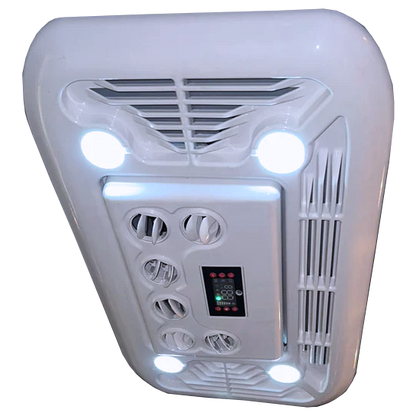

IN-21 Integrated AC unit

Features

• This is a 100% electric AC. With ExoAir you don't need extra batteries, it runs with the same batteries of the truck
• It has an algorithm of batteries that protects their lifetime and will make the AC last, on shutdown engine, for around 8-10 hours.
• It also has a voltage sensor that guarantees the start of the engine.
• It can be used with the engine on (as your main AC system) or with the engine off.
• Installed on flat roofs.
• Warranty: 1 year
• Installation takes 3 hours.

Technical description

Installation:

• On the Hatch/Roof



Dimensions:

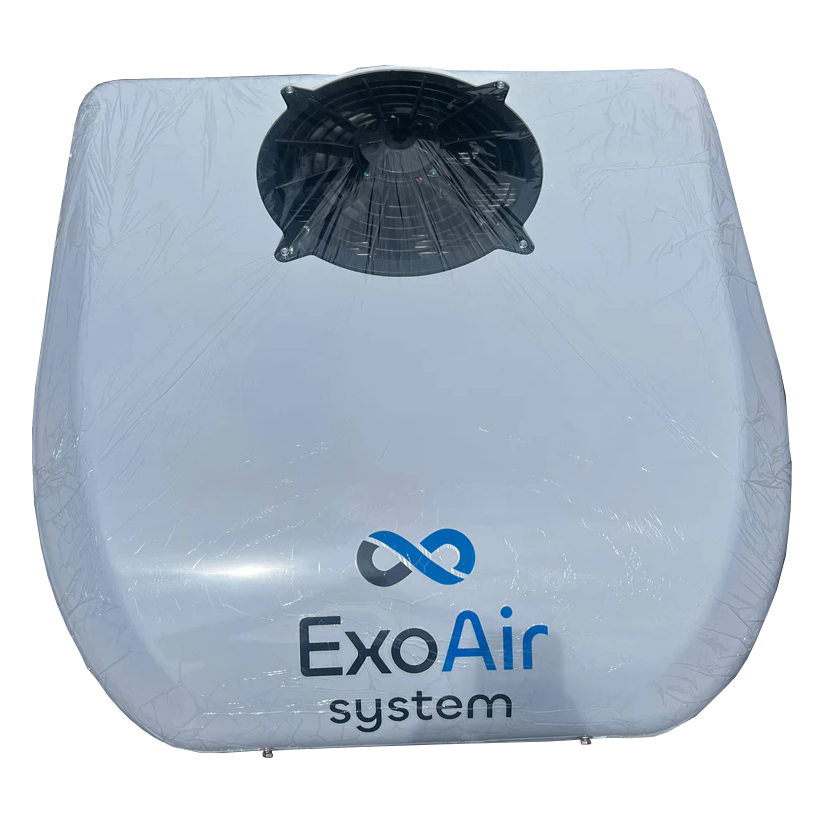

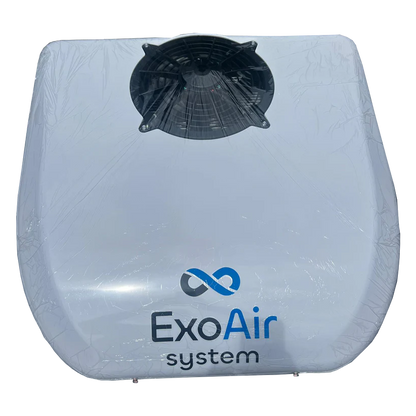

• Condenser: 80 x 84 x 16 cm / 31.50 x 33.07 x 6.30 in.
• Evaporator: 45 x 30 x 6 cm / 17.72 x 11.81 x 2.36 in.



Features:

• Model: IN-21
• Use: Shutdown or Running Engine
• Air flow: 560 m3/h
• Battery protection: Yes
• Energy consumption (12V): Eco mode: from 19-30A Running engine: 19-39A
• (International Certification and ISO 9001 Quality Assurance)
• BTU: 8000
• Air velocities: 3
• Cooling performance level: 2000 Frigories/2400 Watts
• Remote Control: Yes
• Oil: POE R68H
• Voltage: 12V
• Fan Function: Yes
• Cooling Area: 253 to 353 sq. ft
• Compressor: Electric Scroll
• Refrigerant gas: R134a
• Color: White
• Cover: plastic
• Mode: Max. cold/Eco Mode
